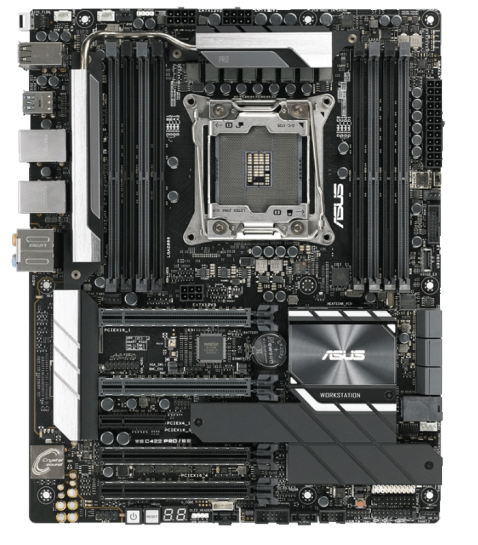

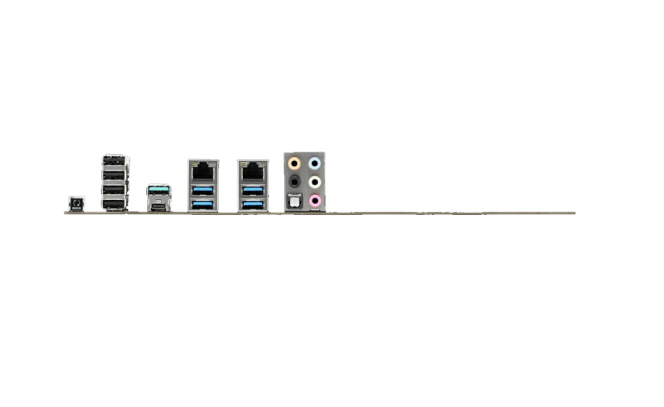

WS motherboard- WS C422 PRO/SE
Resourch: ENERGYUNI-IPC Platform AddDate: 2021-12-23 [back] Views:
- Equipped with Intel ® Xeon ® W processor and ECC memory
- ASUS Control Center Express remote management software provides small and medium enterprises with convenient, secure and cost-effective centralized IT management.
- Server level design with dual Intel Gigabit LAN built in
- New generation transfer speeds -- up to 32Gbps for dual M.2 and U.2, plus up to 10Gbps for USB 3.1 Type-A and Type-C ports
- Excellent graphics capabilities with 2/3 NVIDIA® SLI™ and AMD® Crossfire X™
- Efficient VRM radiator - Metal fin array connected to large surface area via heat conduit to prevent performance degradation caused by hot air from C422
Specifications
CPU Supports Intel ® Socket 2066 processors Intel ® 14 nm processor is supported Supports Intel® Turbo Boost Max 2.0 technology * Intel® Turbo Boost 2.0 is supported or not, depending on the processor type. Chipset Supports Intel ® C422 Memory 8 x DIMM, 支持可高达 1024GB, DDR4 2933/2666/2400/2133 MHz RDIMM, LR-DIMM 内存 *1 Supports a four-channel memory architecture * Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin. Graphical display ASPEED AST2500 64MB Supports VGA output: Header interface Multiple graphics display technology Support NVIDIA® 3-way SLI™ technology Supports AMD 3-way CrossFireX™ technology Expansion slot CPU - 48 channels 2 x PCIe 3.0 x16 (X16 mode) 2 x PCIe 3.0 x16 (Single slot X16, dual slot x8/x8) 1 x PCIe 3.0 x4 Expansion card slot (X4 mode) Storage (depending on shipment) 1 x M.2 x4 Socket 3 Socket x 2, supports M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x4 mode) 1 x M.2 x4 Socket 3 Socket x 3, supporting M key, 2242/2260/2280 storage devices (SATA and PCIE mode) 1 x U.2 Port x 2 6 x SATA 6 GB /s ports Supports Raid 0, 1, 5, and 10 Intel ® Fast Storage Technology Enterprise Edition is supported Intel ® Virtual RAID (VROC) supports CPU RAID Network function Intel® I210-AT, 2 x GIGABit network adapter Sound Realtek® ALC S1220A 8-channel high definition audio codec uses Bel Canto Master 3 - Support: Audio interface Jack-detection, multi-streaming technology, customized front panel audio Jack, front panel microphone audio connection port conversion (Jack-retasking) - Professional pre - rectifier chip eliminates current noise interference, providing pure sound. - Front and rear headphone output impedance sensing - High quality 120 dB stereo playback output (back line-out) and 113 dB SNR recording input (line-in) - Internal amp improves sound quality of headphones and speakers - Supports up to 32-bit /192kHz playback *4 Audio features: - The rear panel is equipped with optical FIBER S/PDIF digital output connection port - DTS Connect - DTS Headphone:X - Audio shielding technology: high precision analog/digital separation without interference - High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effects. - DEPOP noise reduction circuit: reduce the instant pop caused by startup Left and right sound channel independent wiring, two sides can output the same quality of sound. USB interface Intel ® C422 Chipset: 6 x USB 2.0 ports (4 @ rear, 2 @ front) Intel ® C422 Chipset: 6 x USB 3.1 Gen 1 Port (4 @ rear, 2 @ front) ASMedia® USB 3.1 Gen 2 Controller 2 x USB 3.1 Gen 2 Connecting port (2 @ rear,, type-A + USB type-c) ASMedia® USB 3.1 Gen 2 Controller 1 x USB 3.1 Gen 2 Front port Workstation features ASUS Control Center (ACC) ASMB9-iKVM for KVM-over-Internet Other features Asus 5 Heavy Protection III: - Asus SafeSlot Core: High strength safety slot - Asustek LANGuard network security protection: network anti-static, anti-lightning! - Asus enhanced memory overcurrent protection - prevents short circuit damage - Asus ESD Protection - Enhanced ESD protection Asus features: - Memory rescue! - Ai Charger+ charging technology - Onboard button: Power/restart - Turbo LAN Asus Silent heat dissipation solution: - American fanless design and M.2 fin solution Asus EZ DIY: - ASUS USB BIOS FlashBack™ Asus Q - the Design: - Asus Q-LED (CPU, DRAM, VGA, Boot Device LED) - asus Q - shields - asus Q - Slot - asus Q - DIMM - asus Q - Code AURA : - Aura RGB indicator pin - Aura lamp effects are synchronized with compatible Asus ROG devices - Aura programmable lamp strap pin DIGI + Digital power supply control: - CPU power supply: 8-phase digital power supply DIGI + Digital power supply control: - DRAM power supply: 2-phase digital power supply design Onboard m.2 and u.2 interfaces (new transfer technology enables m.2 and u.2 to achieve data transfer speeds up to 32Gb/s) Support Thunderbolt 3 Supports ASUS Control Center (ACC) remote management software Intel® Virtual RAID on CPU (VROC) Internal I/O interface 1 x USB 3.1 Gen 2 Ports on the front panel 1 x USB 3.1 Gen 1 port Expandable 2 groups of external USB 3.1 Gen 1 ports 1 x USB 2.0 port Two groups of external USB 2.0 ports can be added 1 x AAFP Front audio pin 1 X Aura programmable lamp strap pin 1 X Aura RGB Light with pin 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280 storage devices (SATA and PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode) 1 x U.2 Port 6 x SATA 6 GB /s device connects to the socket 1 x TPM pin 2 x CPU fan power socket 1 x 24-PIN EATX Mainboard power socket 2 x 8-pin ATX 12V Mainboard power socket 1 x VROC_HW_Key 1 x Thunderbolt 1 x MemOK! button 1 X temperature sensor port 1 x AIO_ Water pump port 1 x Power switch 1 x Restart switch 1 x 5-PIN EXT_Fan(expansion fan) slot 1 x Clear the CMOS button 3 X Ports on the system panel 1 x COM serial port connector 1 x Front fan port 1 x Fan port on the back 1 x CPU_OV jumper 1 x Aspeed VGA header 1X 6-PIN ATX 12V power port 1 x Water pump fan port BIOS CrashFree BIOS 3 EZ Flash3 F11 EZ Tuning Wizard ASUS UEFI BIOS EZ mode Multi-language BIOS Dimensions ATX version structure 12 inches x 9.6 inches (30.5 cm x 24.4 cm) Weight Color box (3 in 1) Net weight: 4.86 kg Gross weight: 7.49 kg Bulk (5 in 1) Net weight: 7.2 kg Gross weight: 8.9 kg Note *1 The supported memory capacity depends on the installed CPU and memory *2 M.2_2 shares the bandwidth with U.2. *3 M.2_1 shares the SATA bandwidth with SATA6G_1 *4 Due to HAD bandwidth limitations, 8-channel sound effects do not support 32-bit / 192kHz. 32-bit / 192kHz is only available under Windows® 10
