WS motherboard- WS X299 SAGE
Resourch: ENERGYUNI-IPC Platform AddDate: 2021-12-24 [back] Views:

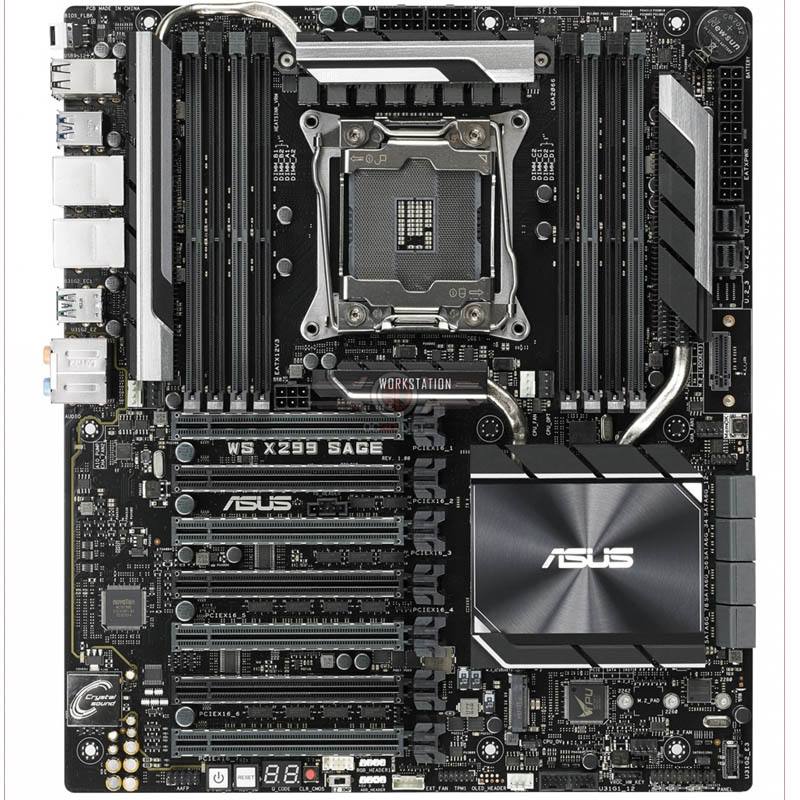

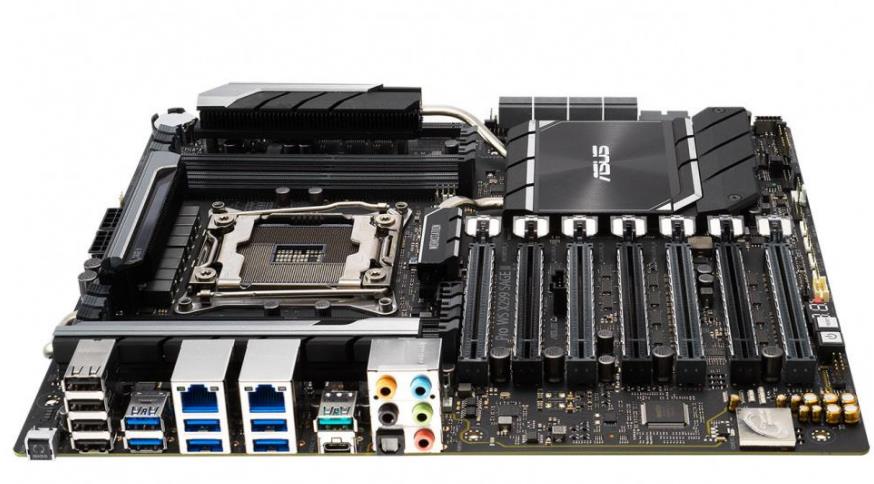

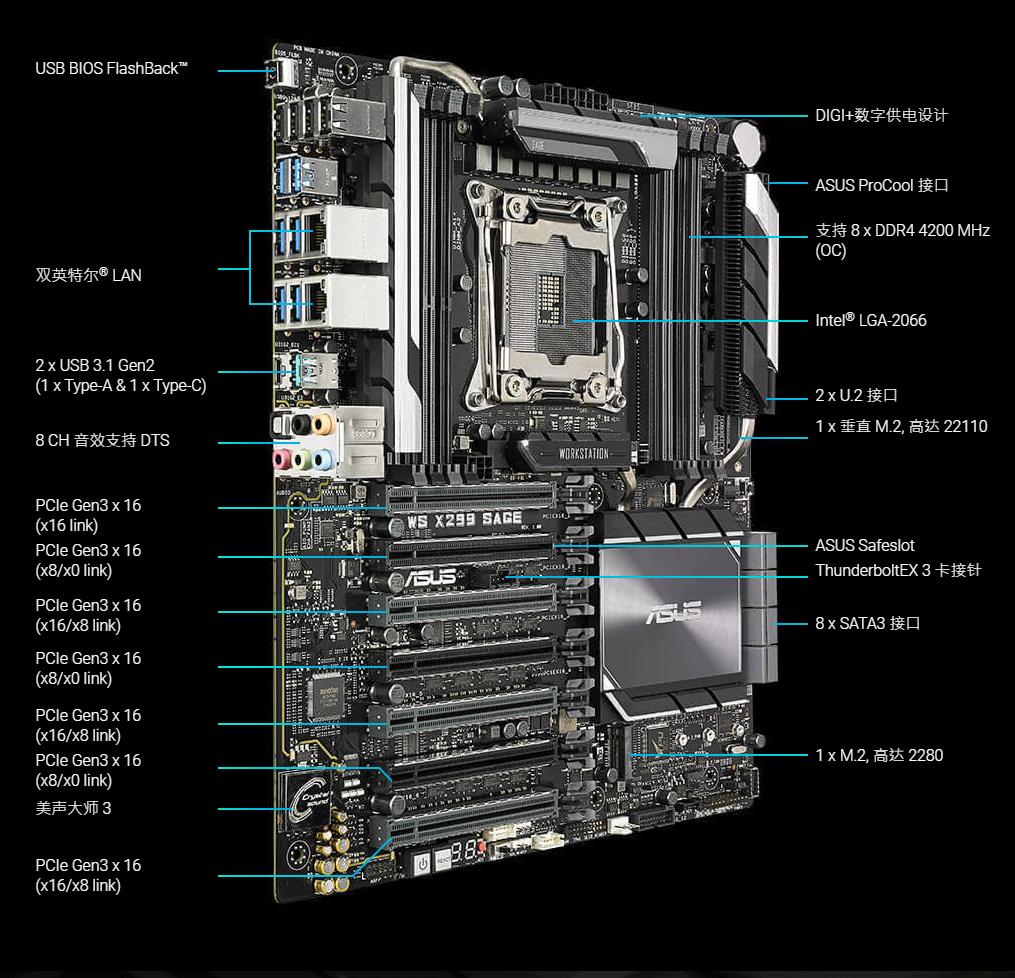

- Quad-gpu display performance: The motherboard accommodates four dual-slot graphics cards and supports 4-way NVIDIA® SLI™ and AMD CrossFireX™ configurations.
- 5 re-optimization: one button can complete the whole system adjustment, for all kinds of workloads to provide excellent overclocking and intelligent cooling functions.
- Advanced cooling options: Fan, water pump and even integrated radiator can be controlled with Smart Fan Control 4 or UEFI.
- High efficiency VRM radiator: Metal fin array connected to large surface area via heat conduit to prevent performance degradation caused by heat
- ASUS Control Center Express remote management software provides small and medium enterprises with convenient, secure and cost-effective centralized IT management.
- Fast storage: up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen 2 and Type-A and Type-C ports, A front port.
Specifications
COU Supports Intel ® Socket 2066 Core ™ X- series processors Support Intel ® Virtual RAID ON CPU (VROC) * Intel® Turbo Boost Max 3.0 is supported or not, depending on the processor type. * Visit www.asus.com for a list of processors supported. Chipset Supports Intel ® X299 Memory Intel ® Core ™ X-Series Processors (above six cores) 8 x dual in-line memory modules (dimms) up to 256GB, DDR4 4200(overfrequency), 4133(overfrequency), 4000(overfrequency), 3600(overfrequency), 2933, 2666/2400, and 2133 MHz non-ecc, un-buffered dimms Intel ® Core ™ X-Series Processor (Quad-core) 4 x dimms up to 64GB, DDR4 4200(overclocked), 4133(overclocked), 4000(overclocked), 3600(overclocked), 2666/2400 (overclocked), and 2133 MHz non-ecc, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) technology * Support for Hyper DIMM is dependent on the physical characteristics of the CPU. * The actual memory frequency varies depending on the Intel CPU type and memory module. See the Intel website for more information about the memory type supported by each CPU. * Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin. Multiple graphics display technology Support NVIDIA® 4-way SLI™ technology Support AMD 4-way CrossFireX technology Expansion slot 7 x PCIe 3.0/2.0 x16 expansion card slot (Single X16 or dual x16/ X16 or triple x16/x16/x16/x16 or quad x16/ X16 / X16 /x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) *2 Storage function (depending on shipment) Intel ® X299 Chipset: 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280 storage devices (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s ports 2 x U.2 Ports x 1 Supports Raid 0, 1, 5, and 10 Support Intel ® Fast Storage Technology Enterprise 5.1 (CPU RAID function requires the installation of X-series 6-core or above processors) Intel ® Intelligent Response technology is supported Support Intel ® Fast Storage Technology 15 Intel ® Upton ™ memory technology Intel ® Virtual RAID (VROC) supports CPU RAID Network function Intel® I210-AT, 1 x GIGABit network adapter Intel® I219-LM, 1 x GIGABit NETWORK adapter Audio Realtek® ALC S1220A 7.1 channel high definition audio codec - Support: Audio interface Jack-detection, multi-streaming technology, front panel microphone audio connection port conversion (Jack-retasking) - Front and rear headphone output impedance sensing - High quality 120 dB stereo playback output (back line-out) and 113 dB (line-in) - Internal amp improves sound quality of headphones and speakers Audio features: - DTS Connect - DTS Headphone:X - Audio amplifier: Allows headphones and speakers to restore high quality sound - High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effects. - DEPOP noise reduction circuit: reduce the instant pop caused by startup Left and right sound channel independent wiring, two sides can output the same quality of sound. USB interface Realtek® ALC S1220A 7.1 channel high definition audio codec - Support: Audio interface Jack-detection, multi-streaming technology, front panel microphone audio connection port conversion (Jack-retasking) - Front and rear headphone output impedance sensing - High quality 120 dB stereo playback output (back line-out) and 113 dB (line-in) - Internal amp improves sound quality of headphones and speakers Audio features: - DTS Connect - DTS Headphone:X - Audio amplifier: Allows headphones and speakers to restore high quality sound - High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effects. - DEPOP noise reduction circuit: reduce the instant pop caused by startup Left and right sound channel independent wiring, two sides can output the same quality of sound. Other features Overclocking design - Asus PRO Clock II overclocking technology 5th generation dual intelligent processor, 5 times optimized - 5 Retuning keys integrate TPU, EPU, DIGI+ Digital power supply, Fan Xpert 4, and Turbo Core App Fan Xpert4 - Fan Xpert 4 uses the Fan automatic adjustment function and multiple thermistor options to optimize system heat dissipation control TPU Asus EPU intelligent energy saving processor: - EPU Asus digital power supply design: - Advanced 8-phase CPU digital power supply design - Advanced 2-phase memory digital power supply design Asus 5 Heavy Protection III: - Asus SafeSlot Core: High strength safety slot - Asus overvoltage protection - circuit protection power supply design - Stainless steel moisture-proof I/O interface - 3 times more durable than ordinary materials - Asus enhanced memory overcurrent protection - prevents short circuit damage - Asus ESD Protection - Enhanced ESD protection Asus features: - Ai Charger+ charging technology - AI Suite 3 - Crystal Sound 3 Asus EZ DIY: - Asus CrashFree BIOS - Asus EZ Flash - Multi-language BIOS - ASUS USB BIOS FlashBack™ Asus Q - the Design: - Asus Q-LED (CPU, DRAM, VGA, Boot Device LED) - asus Q - shields - asus Q - Slot - asus Q - DIMM - asus Q - Code - asus Q - Connector AURA : - Aura RGB indicator pin - Aura programmable lamp strap pin Onboard m.2 and u.2 interfaces (new transfer technology enables m.2 and u.2 to achieve data transfer speeds up to 32Gb/s) Supports ASUS Control Center (ACC) remote management software Operating system Support Windows® 10 64-bit Backplane I/O port 2 x LAN (RJ45) port 6 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 interface (one of which can be switched to USB BIOS FlashBack™) 1 x USB 3.2 Gen 2 (turquoise)Type-A, 1 x USB 3.2 Gen 2 (black)USB Type-C 1 x optical fiber S/PDIF digital audio output interface 1 x USB BIOS FlashBack™ button 1 x 8 channel audio interface Internal I/O interface 1 x USB 3.1 Gen 2 Ports on the front panel 1 x USB 3.1 Gen 1 port Expandable 2 groups of external USB 3.1 Gen 1 ports 1 x AAFP Front audio pin 1 X Aura programmable lamp strap pin 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280 storage devices (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode) 2 x U.2 Ports 1 x COM serial port connector 1 X Aura RGB Light with pin 8 x SATA 6Gb/s device connects to socket 1 x TPM pin 1 x CPU Fan power socket 2 X fan ports on the chassis 1 x CPU Optional fan port 1 x 24-PIN EATX Mainboard power socket 2 x 8-pin ATX 12V Mainboard power socket 1 x VROC_HW_Key 1 x Thunderbolt 1 x 6-pin ATX power port 1 x AIO_ Water pump port 1 X EZ XMP switch 1 x Power switch 1 x Restart switch 1 x 5-PIN EXT_Fan(expansion fan) slot 1 x Clear the CMOS button 1 x special port for water pump (4-PIN) 1 x Ports on the system panel 1 x thermal connector 1 x CPU_OV jumper 1 x MemOK! button 1 x M.2 Fan pins Accessories The manual The I/O panel Extended cable with addressable LED strips 8 x SATA 6.0Gb/s data cable 1 x vertical M.2 support kit 1 X COM data cable 1 x 3-way SLI bridge 1 x 4-way SLI bridge 1 x MOS Cooling Kit (Fan bracket and 40mm x 40mm fan) 1 x Random DVD 1 x M.2 Screws 1 x Q-Connector 1 x SLI HB bridge (2-channel -M) Dimensions CEB version structure 12 inches x 10.5 inches (30.5 cm x 26.7 cm) Weight Gift box (3 in 1) Net weight: 5.55 kg Gross weight: 8.06 kg Bulk (5 in 1) Net weight: 6.99 kg Gross weight: 9.37 kg Eenvironment Operating temperature: 10℃ ~ 35℃ Non-operating temperature: -40℃ ~ 70℃ Non-operating humidity: 20% ~ 90% (no condensation) Note *Intel® VROC is supported by RSTe and Intel® VROC_HW_key. VROC_HW_Key must be purchased separately. NVMe RAID types and functions depend on the installed Intel ® VROC_HW_key. *1 U.2 ports support only 44-Lane cpus. *2 Please refer to the Appendix block diagram in the manual for more details.
