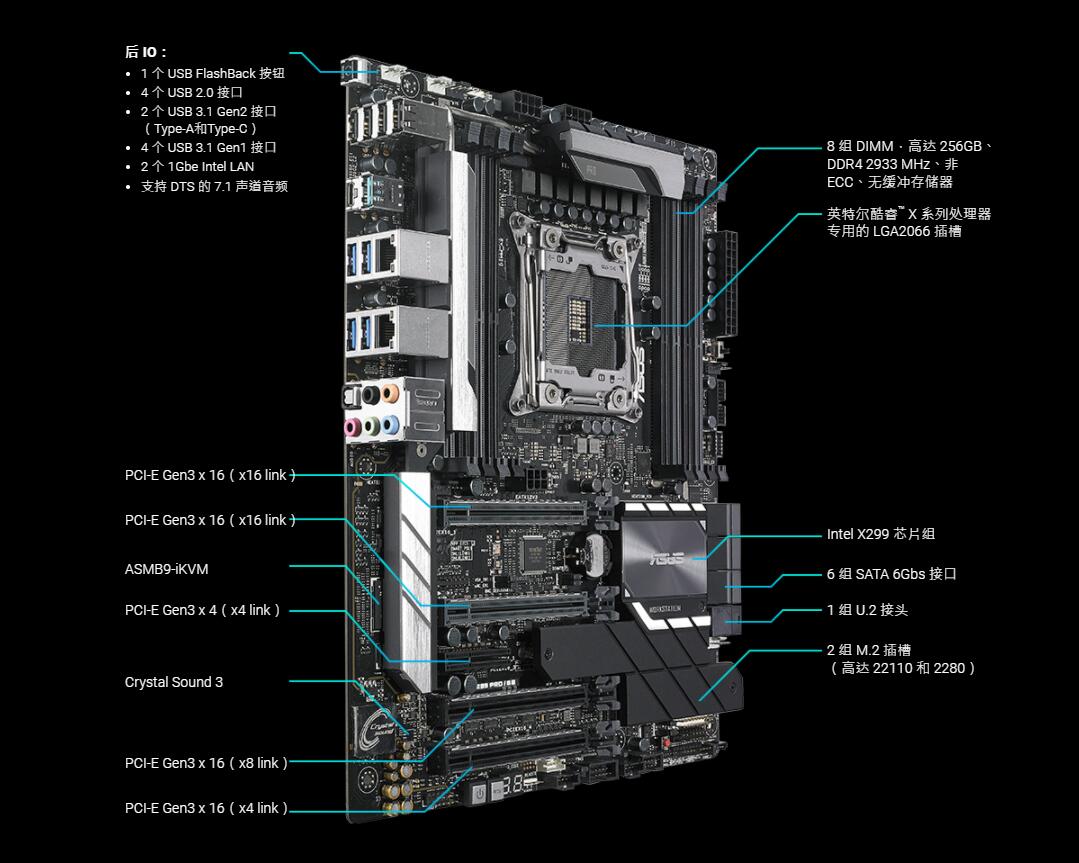

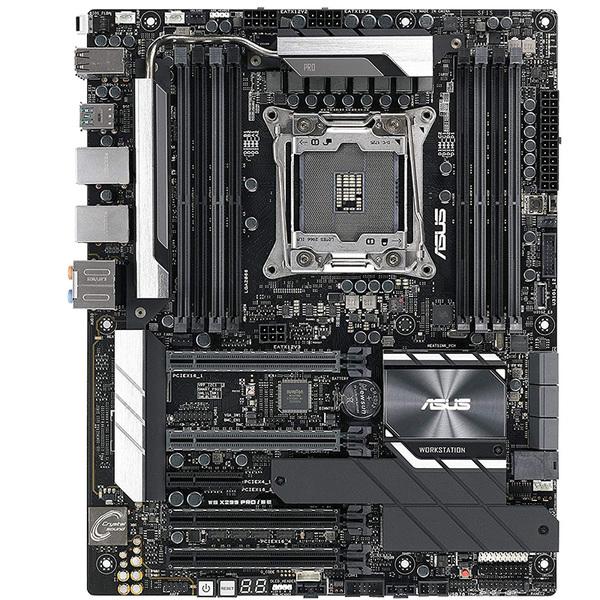

WS motherboard

WS X299 PRO/SE Resourch: ENERGYUNI-IPC Platform AddDate: 2021-12-24 [back] Views:

ASUS Control Center(ACC) Remote management software: a software utility that provides small and medium enterprises with convenient, secure, and low-cost centralized IT management.
Asmb9-ikvm (BMC) : supports remote BIOS update, fan control, independent KVM, video recording, and BSOD extraction, and provides full-time remote monitoring and diagnosis through the remote console (Web GUI & CLI)
High-performance VRM heat sink: A metal fin array connected to a large heat dissipation area through a heat conduit prevents the PERFORMANCE of the X299 from deteriorating due to hot air.
New generation transfer speed: up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C ports.

Specifications

CPU	Supports Intel ® Socket 2066 Core ™ X- series processors
CPU	* Visit www.asus.com for a list of processors supported.
Chipset	Supports Intel ® X299
Memory	Intel ® Core ™ X-Series Processors (above six cores)
	8 x dual in-line memory modules (dimms) up to 256GB, DDR4 4133(overfrequency), 4000(overfrequency), 3600(overfrequency), 2933, 2666, and 2400 MHz non-ecc, un-buffered dimms
	Intel ® Core ™ X-Series Processor (Quad-core)
	4 x dimms up to 64GB, DDR4 4133(overclocked), 4000(overclocked), 3600(overclocked), 2666/2400 MHz non-ecc, un-buffered memory
	* Support for Hyper DIMM is dependent on the physical characteristics of the CPU.
	* Check ASUS AVL for updates.
	* The actual memory frequency varies depending on the Intel CPU type and memory module. See the Intel website for more information about the memory type supported by each CPU.
	* Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.
Graphical display	ASPEED AST2500 64MB
Graphical display	Supports VGA output: Header interface
Multiple graphics display technology	Support NVIDIA® 3-way SLI™ technology
Multiple graphics display technology	Supports AMD 3-way CrossFireX™ technolog
Expansion slot	CPU - 44 channels
	2 x PCIe 3.0 x16 (X16 mode)
	1 x PCIe 3.0 x16 (X8 mode)
	1 x PCIe 3.0 x16 (X4 mode)
	1 x PCIe 3.0 x4 Expansion card slot (X4 mode)
	CPU - 28 channels
	1 x PCIe 3.0 x16 (X16 mode)
	1 x PCIe 3.0 x16 (X8 mode)
	1 x PCIe 3.0 x16 (X4 mode)
	1 x PCIe 3.0 x4 Expansion card slot (X4 mode)
	CPU - 16 channels
	1 x PCIe 3.0 x16 (X8 mode)
	2 x PCIe 3.0 x16 (X4 mode)
	1 x PCIe 3.0 x4 Expansion card slot (X4 mode)
Storage function (depending on shipment)	Intel ® X299 Chipset:
	1 x M.2 Socket 3 Socket that supports M key and 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode) x 1
	1 x M.2 Socket 3 Socket for M key, 2242/2260/2280 storage devices (SATA and PCIE mode) x 2
	1 x U.2 Port
	6 x SATA 6 GB /s ports
	Supports Raid 0, 1, 5, and 10
	Support Intel ® Fast Storage Technology Enterprise 5.1 (CPU RAID function requires the installation of X-series 6-core or above processors)
	Intel ® Intelligent Response technology is supported
	Support Intel ® Fast Storage Technology 15
	Intel ® Upton ™ memory technology
Network	Intel® I210-AT, 2 x GIGABit network adapter
Audio	Realtek® ALC S1220A 7.1 channel high definition audio codec uses Bel Canto Master 3
	- Support: Audio interface Jack-detection, multi-streaming technology, front panel microphone audio connection port conversion (Jack-retasking)
	- Front and rear headphone output impedance sensing
	- High quality 120 dB stereo playback output (back line-out) and 113 dB (line-in)
	- Internal amp improves sound quality of headphones and speakers
	Audio features:
	- DTS Connect
	- DTS Headphone:X
	- Audio amplifier: Allows headphones and speakers to restore high quality sound
	- High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effects.
	- DEPOP noise reduction circuit: reduce the instant pop caused by startup
	Left and right sound channel independent wiring, two sides can output the same quality of sound.
USB interface	Intel ® X299 Chipset:
	6 x USB 2.0 ports (4 @ rear, 2 @ front)
	Intel ® X299 Chipset:
	6 x USB 3.1 Gen 1 Port (4 @ rear, 2 @ front)
	ASMedia® USB 3.1 Gen 2 Controller
	3 x USB 3.1 Gen 2 Connecting port (2 @ rear, 1 @ front, Type-A + USB type-c)
Workstation features	ASUS Control Center (ACC)
Workstation features	ASMB9-iKVM for KVM-over-Internet
Other features	Overclocking design - Asus PRO Clock II overclocking technology
	Asus 5 Heavy protection:
	- Asus memory overcurrent protection - Prevent motherboard and memory damage caused by short circuit
	Asus ESD protection - Protect your computer from static electricity
	- Asustek STAINLESS steel MOISTure-proof I/O port - Corrosion protection with 3x enhanced life
	Asus EPU intelligent energy saving processor:
	- EPU
	Asus digital power supply design:
	- Advanced 8-phase CPU digital power supply design
	- Advanced 2-phase memory digital power supply design
	Asus features:
	- Ai Charger+ charging technology
	- Turbo LAN
	- Crystal Sound 3
	Asus Silent heat dissipation solution:
	- American fanless design and M.2 fin solution
	Asus Q - the Design:
	- Asus Q-LED (CPU, DRAM, VGA, Boot Device LED)
	- asus Q - shields
	- asus Q - Slot
	- asus Q - DIMM
	- asus Q - Code
	- asus Q - Connector
	AURA :
	- Aura RGB indicator pin
	- Aura programmable lamp strap pin
	Onboard m.2 and u.2 interfaces (new transfer technology enables m.2 and u.2 to achieve data transfer speeds up to 32Gb/s)
	Supports ASUS Control Center (ACC) remote management software
Back I/O interface	2 x LAN (RJ45) port
	4 x USB 3.1 Gen 1
	4 x USB 2.0 ports
	2 x USB 3.2 Gen 2 () type-A + USB type-c
	1 x optical fiber S/PDIF digital audio output interface
	1 x USB BIOS FlashBack™ button
	1 x 8 channel audio interface
Internal I/O interface	1 x USB 3.1 Gen 1 port Expandable 2 groups of external USB 3.1 Gen 1 ports
	1 x USB 2.0 port Two groups of external USB 2.0 ports can be added
	1 X Aura programmable lamp strap pin
	1 x M.2 Socket 3 Socket for M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode)
	1 x M.2 Socket 3 sockets for M key, 2242/2260/2280 storage devices (SATA mode and X4 PCIE mode)
	1 x U.2 Port
	1 x COM serial port connector
	1 X Aura RGB Light with pin
	6 x SATA 6 GB /s device connects to the socket
	1 x TPM pin
	1 x 24-PIN EATX Mainboard power socket
	2 x 8-pin ATX 12V Mainboard power socket
	1 x VROC_HW_Key
	1 x Thunderbolt
	1 x 6-pin ATX power port
	1 x AUX Panel
	1 x VGA port
	1 X EZ XMP switch
	1 x Power switch
	1 x Restart switch
	1 x 5-PIN EXT_Fan(expansion fan) slot
	1 x Clear the CMOS button
	1 X AIO PUMP Pin connections
	1 x Front fan port
	1 x Fan port on the back
	1 x thermal connector
	1 x CPU_OV jumper
	1 x MemOK! button
	1 x U.2 Ports (supporting U.2 NVMe devices)
	1 x Water pump fan port
	1 x PANEL2
	1 x PANEL1
Accessories	The manual
	The I/O panel
	6 x SATA 6.0Gb/s data cable
	1 x vertical M.2 support kit
	1 X COM data cable
	1 x SLI bridge
	1 x 3-way SLI bridge
	1 x 2-port USB module
	1 x Random DVD
	2 x M.2 screws
	1 x Q-Connector
	1 X RGB lamp with extension cord (80 cm)
Dimensions	ATX version structure
Dimensions	12 inches x 9.6 inches (30.5 cm x 24.4 cm)
Weight	Color box (3 in 1)
	Net weight: 4.59kg
	Gross weight: 7.48 Kg
	Color box (3 in 1)
	Net weight: 4.59kg
	Gross weight: 7.48 Kg
Note	* The actual number of supported multiple graphics cards varies depending on the manufacturer's graphics cards. Please consult the manufacturer in advance.
Note	*1 M.2_2 and U.2 share the bandwidth
